Gravity Die Casting vs. Sand Casting for Aluminum Parts
When metal parts have a requirement of excellent corrosion resistance and light weight, aluminum alloy is a good option to consider. Casting of aluminum alloys can creat complicated products with good strength.
Gravity die casting and sand casting are two different methods used for producing aluminum parts. Each method has its own advantages and disadvantages, and the choice between the two depends on factors such as the desired part characteristics, production volume, cost considerations, and more. Here's a comparison of the two processes:

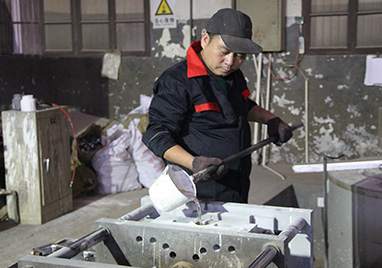

Gravity Die Casting:
Process:
Gravity die casting, also known as permanent mold casting, involves pouring molten metal into a reusable metal mold under the force of gravity.
The mold is typically made of steel or cast iron and is preheated to help maintain the temperature of the molten metal.
The metal solidifies relatively quickly due to the high thermal conductivity of the mold.
Surface Finish and Tolerance:
Gravity die casting generally produces parts with better surface finish and tighter tolerances compared to sand casting.
The molds provide a smoother and more consistent surface texture on the final part.
Production Rate:
Gravity die casting is typically faster than sand casting because the metal solidifies more rapidly in the metal mold.
This makes it suitable for producing higher quantities of parts.
Cost and Complexity:
The initial tooling costs for gravity die casting molds can be higher compared to sand casting patterns.
However, the molds can be used for a large number of cycles, which can offset the higher initial cost for high-volume production.
Material Waste:
Gravity die casting generates less material waste compared to sand casting since there is no need for expendable molds.
Part Complexity:
Gravity die casting is well-suited for producing parts with more complex shapes and intricate details.

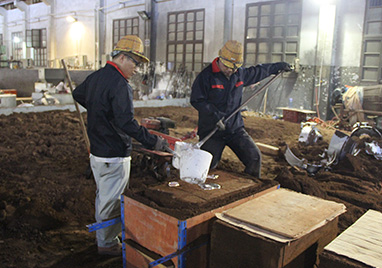

Sand Casting:
Process:
Sand casting involves creating a mold from a mixture of sand and a binder material.
The mold is formed around a pattern that is shaped like the desired part.
Molten metal is poured into the mold, and after solidification, the sand mold is broken to remove the casting.
Surface Finish and Tolerance:
Sand casting generally produces parts with rougher surface finishes and looser tolerances compared to gravity die casting.
Post-processing may be required to achieve the desired surface quality.
Production Rate:
Sand casting is generally slower due to the time required for creating the mold and the slower cooling of the metal in the sand.
Cost and Complexity:
Tooling costs are usually lower for sand casting since the molds are made of sand and do not require the same level of precision as metal molds.
Material Waste:
Sand casting generates more material waste due to the need to create new molds for each casting.
Part Complexity:
Sand casting is suitable for simpler shapes and larger parts, but it may struggle with producing intricate details.
In summary, gravity die casting is favored for higher production volumes, better surface finish, and more complex parts, albeit with higher initial tooling costs. Sand casting, on the other hand, is more cost-effective for lower quantities, larger parts, and simpler shapes, but it yields rougher surface finishes and may require more post-processing. The choice between the two methods depends on your specific production requirements and constraints.
