What You Need to Know About Aluminum Die Casting?
If your project design requires an aluminum part, it is crucial to determine the manufacturing process to utilize to produce it. Among the numerous methods for forming aluminum and alloys, aluminum die casting is one of the most prevalent options that designers and industrial companies can avail of.
Here are some key points to know about aluminum die casting:
What is Aluminum Die Casting?
Aluminum die casting is a manufacturing process that involves the production of metal parts by injecting molten aluminum alloy into a steel mold, known as a die. The molten aluminum is forced into the mold cavity under high pressure, where it solidifies and takes the shape of the mold. Once the part has solidified, the mold is opened, and the cast aluminum part is removed.
The die casting process offers several advantages, including:
High Efficiency: Aluminum die casting allows for the production of complex shapes with high precision and consistency. The process can produce intricate details and thin walls that may be challenging or costly to achieve with other manufacturing methods.
Strong and Lightweight Parts: Aluminum alloys used in die casting offer excellent strength-to-weight ratios, making them suitable for applications where both strength and lightness are essential. This makes die-cast aluminum parts widely used in the automotive, aerospace, and electronics industries.
Cost-Effective Production: Die casting is a highly efficient process, enabling high production volumes at a relatively low cost per part. The use of reusable molds and the fast cycle times contribute to cost-effectiveness in large-scale production.
Versatility: Aluminum die casting can produce parts of various sizes and complexities, ranging from small intricate components to larger structural parts.
Excellent Surface Finish: The die casting process results in parts with smooth surfaces and fine details, reducing the need for additional surface finishing operations.
Aluminum die casting finds applications in various industries, including automotive, aerospace, electronics, appliances, and telecommunications. It offers a cost-effective and efficient way to produce high-quality, lightweight, and complex parts with excellent dimensional accuracy and surface finish.
What’s Good About Aluminum Die Casting?
Aluminum die casting offers several advantages that make it a popular manufacturing process. Here are some of the key benefits of aluminum die casting:
Lightweight and Strong: Aluminum alloys used in die casting offer a high strength-to-weight ratio, making them ideal for applications where weight reduction is essential. Die-cast aluminum parts are lightweight yet structurally strong, providing excellent performance and durability.
Complex Geometries: The die casting process allows for the production of complex and intricate shapes with high precision. It can create thin walls, fine details, and intricate features that may be challenging or costly to achieve with other manufacturing methods. This design flexibility opens up a wide range of possibilities for product development and innovation.
High Production Efficiency: Aluminum die casting is a highly efficient process for mass production. It enables rapid production rates and short cycle times, resulting in high volumes of parts produced within a relatively short period. The use of reusable molds (dies) further contributes to the efficiency and cost-effectiveness of the process.
Excellent Surface Finish: Die-cast aluminum parts typically have smooth surfaces and fine details, requiring minimal additional surface finishing operations. This saves time and cost in post-processing and improves the overall aesthetics of the parts.
Tight Tolerances: Die casting can achieve tight dimensional tolerances, ensuring consistent part quality and interchangeability. This is particularly important for applications where precise fit and assembly are critical.
Good Thermal Conductivity: Aluminum has excellent thermal conductivity, allowing for efficient heat dissipation in applications that require thermal management. This makes die-cast aluminum parts suitable for heat sinks, electronic components, and other applications where heat transfer is essential.
Corrosion Resistance: Many aluminum alloys used in die casting exhibit good corrosion resistance. This makes die-cast aluminum parts suitable for outdoor or harsh environments where protection against corrosion is important.
Cost-Effective: Aluminum die casting offers cost advantages in terms of tooling and production. The initial tooling costs may be higher compared to other processes, but die-cast molds have a long lifespan and can produce a large number of parts, making it cost-effective for high-volume production.
Due to these advantages, aluminum die casting is widely used in industries such as automotive, aerospace, electronics, appliances, and more. It provides lightweight, strong, and complex parts with high efficiency and cost-effectiveness.
Top Things to Consider in Aluminum Die casting mold Design
When designing a mold for aluminum die casting, several key factors should be considered to ensure a successful and efficient process. Here are the top things to consider:
Part Geometry: Analyze the part design and geometry to determine the optimal mold configuration. Consider factors such as wall thickness, draft angles, undercuts, and any other features that may affect the mold's complexity or part ejection.
Material Flow and Fill: Ensure proper material flow and fill within the mold cavity. Design an efficient gating system, including the size, shape, and location of gates, runners, and sprues, to facilitate smooth and uniform filling of the cavity. Consider the molten metal's fluidity and flow characteristics to minimize turbulence, air entrapment, and defects.
Cooling System: Incorporate an effective cooling system into the mold design to control the solidification process. Optimize the placement and design of cooling channels to ensure even and efficient cooling of the part. Proper cooling helps prevent shrinkage, warping, and porosity, and contributes to dimensional accuracy and surface finish.
Venting and Gas Escape: Provide adequate venting and overflow channels in the mold to allow trapped gases and air to escape during the casting process. Proper venting prevents gas-related defects such as porosity and improves the overall quality of the part.
Draft Angles: Incorporate appropriate draft angles in the mold design to facilitate part ejection. Draft angles allow for smooth release of the part from the mold without damaging its surface or features. Typical draft angles range from 1° to 3°, but they may vary depending on the specific part design.
Material Selection: Consider the choice of mold material based on factors such as mold life, heat transfer properties, and thermal expansion. Mold materials with high thermal conductivity, such as hardened steel, can promote efficient heat dissipation during the casting process.
Parting Line and Ejection: Determine the optimal placement of the parting line, where the two halves of the mold meet, to minimize flash or excess material. Design appropriate ejection mechanisms, such as ejector pins or slides, to ensure smooth part removal from the mold.
Tolerances and Dimensional Accuracy: Pay attention to achieving the desired dimensional accuracy and tolerances in the final part. Consider factors such as shrinkage rates of the aluminum alloy and incorporate appropriate allowances into the mold design to compensate for the expected dimensional changes during solidification.
Mold Maintenance and Durability: Design the mold with ease of maintenance in mind. Consider features such as removable inserts or slide mechanisms that may require regular maintenance or replacement. Ensure that the mold is durable and robust enough to withstand the high pressures and temperatures involved in the die casting process.
Collaboration and Simulation: Foster collaboration between mold designers, toolmakers, and manufacturers to optimize the mold design. Utilize advanced simulation software to analyze and predict the mold filling, cooling, and solidification processes. Simulation can help identify potential issues, optimize design parameters, and reduce the need for costly trial-and-error iterations.
By considering these key factors in aluminum die casting mold design, manufacturers can enhance part quality, achieve dimensional accuracy, reduce defects, and improve production efficiency.

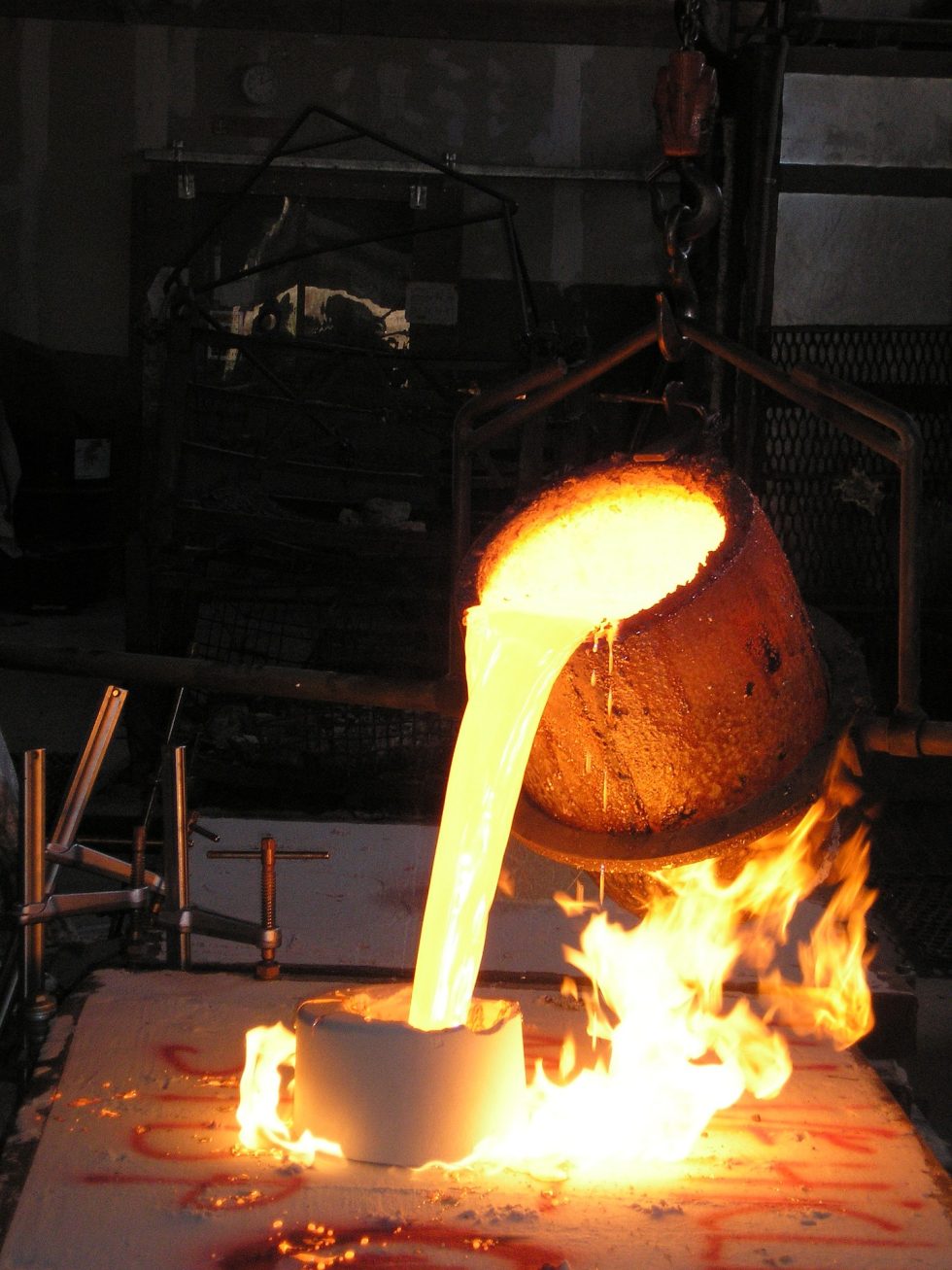

What are the Differences between Aluminum Die Casting versus Other Casting Methods?
Aluminum die casting differs from other casting methods in several ways. Here are some key differences between aluminum die casting and other common casting methods:
Process and Equipment: Aluminum die casting involves injecting molten aluminum alloy into a steel mold under high pressure. The high pressure helps to fill the mold cavity quickly and achieve high accuracy and detail in the final part. Other casting methods, such as sand casting or investment casting, use molds made of sand or ceramic materials and do not involve high-pressure injection.
Complexity and Precision: Die casting excels in producing complex and intricate parts with high precision. The use of reusable molds and the high-pressure injection allow for the creation of fine details, thin walls, and complex geometries. In contrast, other casting methods may have limitations in achieving intricate shapes or maintaining tight tolerances.
Surface Finish: Die casting generally results in parts with smooth surfaces and fine details, requiring minimal additional surface finishing. This is due to the high precision of the mold and the high flow rate of the molten metal during the process. In sand casting, for example, the surface finish may be rougher and may require more post-processing to achieve the desired surface quality.
Production Volume: Aluminum die casting is well-suited for high-volume production. The process allows for rapid production rates and short cycle times, making it efficient for mass production. Other casting methods, such as investment casting, may be more suitable for lower production volumes due to longer processing times and higher costs associated with mold preparation.
Material Selection: Aluminum die casting is specifically used for casting aluminum alloys. These alloys offer a combination of strength, lightweight properties, and good corrosion resistance. Other casting methods, like sand casting, investment casting, or gravity casting, are more versatile and can be used with a wider range of materials, including various metals and even non-metal materials.
Tooling Cost: The initial tooling costs for aluminum die casting can be relatively high compared to other casting methods due to the need for steel molds. However, die-cast molds have a long lifespan and can produce a large number of parts, making them cost-effective for high-volume production. Other casting methods may have lower tooling costs but may require more tooling changes or have limitations in terms of part complexity or precision.
Each casting method has its own strengths and limitations, and the choice of method depends on factors such as part complexity, production volume, material requirements, and cost considerations. It is essential to consider these factors and consult with experts to determine the most suitable casting method for a specific project.

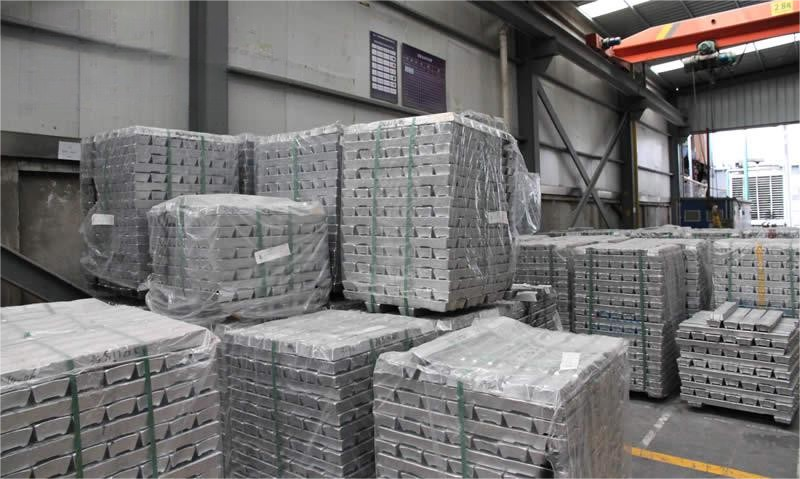

What Are the Most Prevalent Aluminum Die Casting Alloys?
The most prevalent aluminum die casting alloys include:
A380: This alloy is widely used in various industries and applications due to its good combination of casting and product properties. It offers excellent fluidity, high strength, and good corrosion resistance. A380 is commonly used for automotive parts, electrical housings, and general-purpose castings.
A383: Similar to A380, A383 offers excellent fluidity and good mechanical properties. It has improved resistance to hot cracking and is often used for complex-shaped castings that require high strength and dimensional stability.
A360: This alloy has excellent fluidity when molten, making it suitable for intricate and thin-walled castings. A360 offers good corrosion resistance and pressure tightness, making it a popular choice for automotive parts and electronic components.
A390: A390 is known for its high strength and superior wear resistance. It is commonly used for components that require both strength and durability, such as engine brackets, transmission cases, and automotive wheels.
A413: A413 is favored for its excellent pressure tightness and mechanical properties. It offers good strength, heat treatability, and corrosion resistance. This alloy is commonly used for aerospace components, automotive parts, and other applications requiring high-quality castings.
ADC12: This alloy is widely used in Asia and offers good casting properties, high strength, and excellent corrosion resistance. It is commonly used for automotive components, electrical connectors, and consumer goods.
The choice of alloy depends on the specific requirements of the application, including factors such as strength, corrosion resistance, thermal conductivity, and cost. It is recommended to consult with a materials engineer or die casting expert to determine the most suitable alloy for a particular project.
Final Word About Aluminum Die Casting
Picking the metal-forming process will be based on your budget, the application of your aluminum part, and the quantity of the parts you need. Die-casting aluminum can be hefty in costs, but it’s worth it, especially if your design is complex and requires many components.
