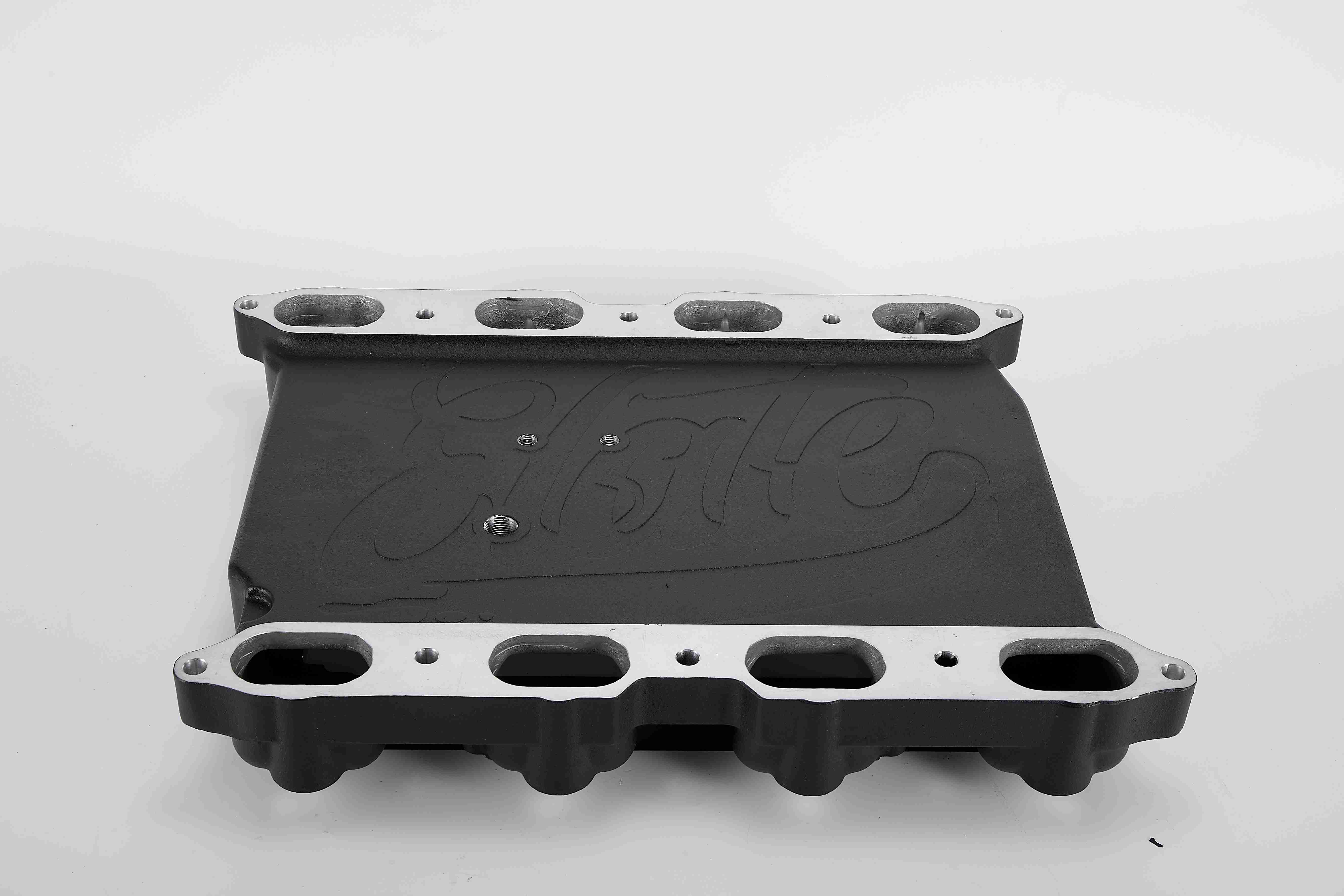

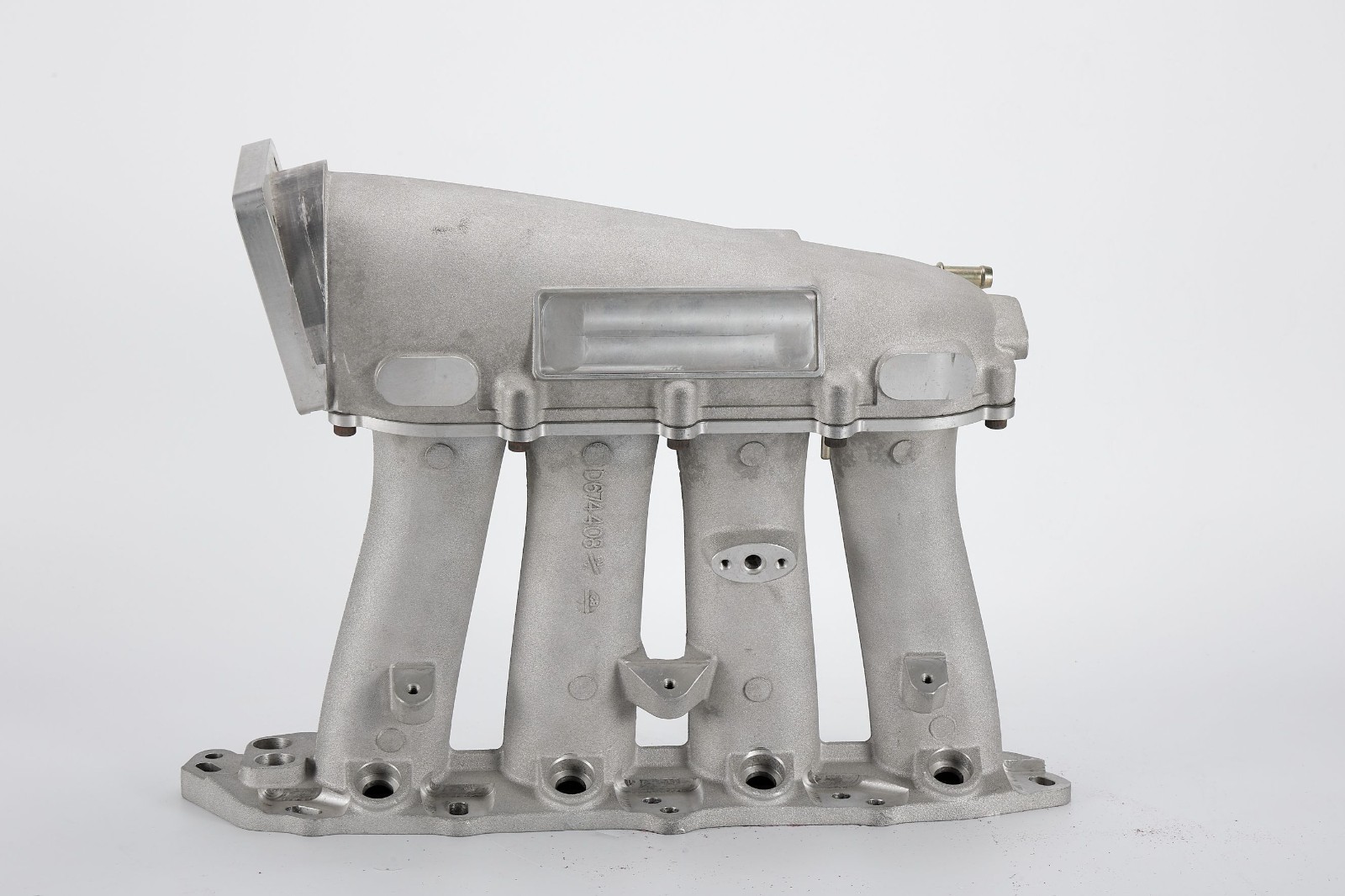

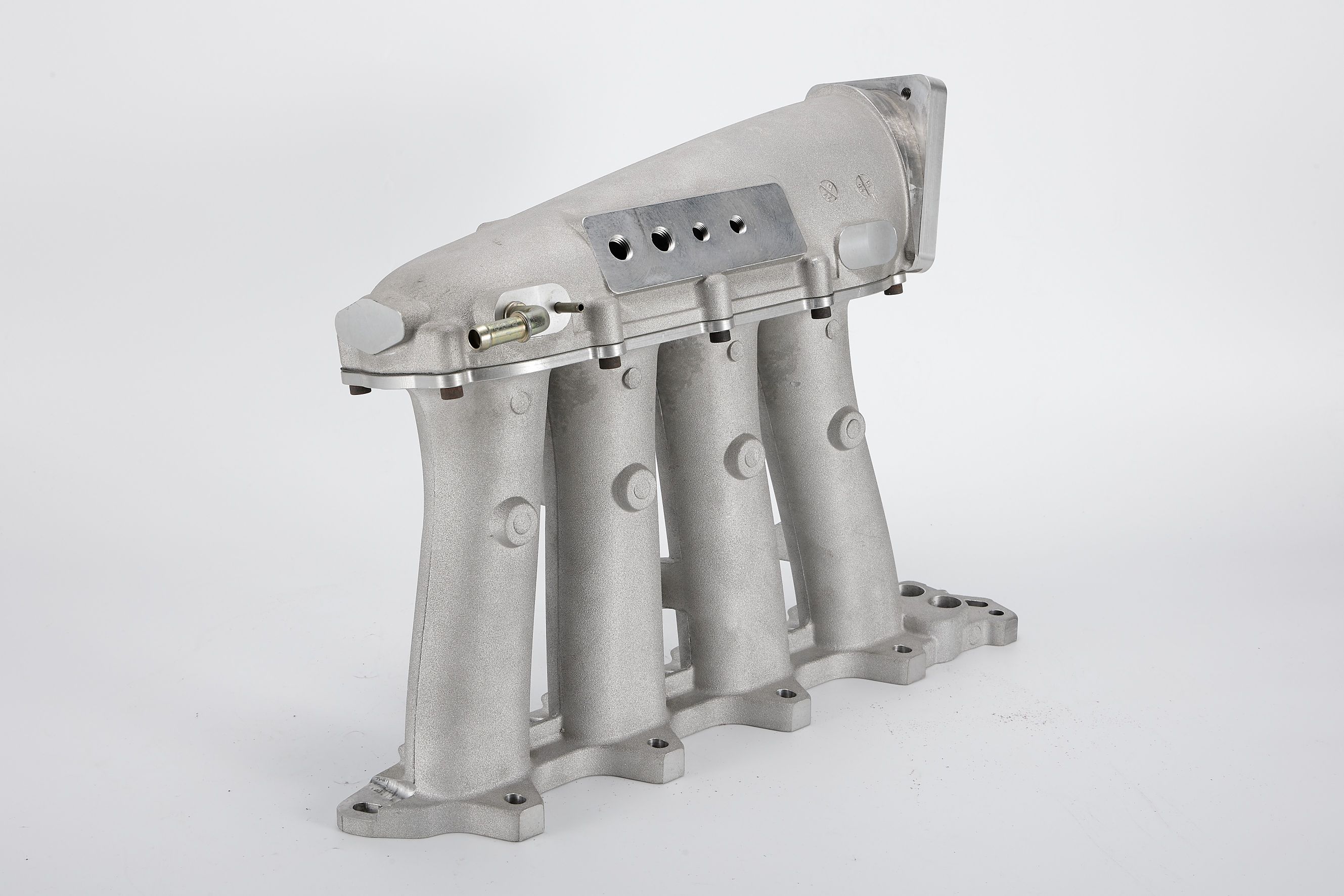

Aluminum Gravity Casting Intake Manifolds In China
Product Description
Aluminum Gravity Casting for Intake Manifolds: A Comprehensive Guide
In the automotive industry, intake manifolds play a critical role in ensuring optimal engine performance. These components are responsible for distributing air or air-fuel mixtures to the engine cylinders, making their design and manufacturing crucial for efficiency and durability. Among the various manufacturing methods available, aluminum gravity casting has emerged as a popular choice for producing high-quality intake manifolds. In this article, we delve into the benefits, process, and applications of aluminum gravity casting in the production of intake manifolds.
What Is Aluminum Gravity Casting?
Aluminum gravity casting is a manufacturing process in which molten aluminum is poured into a mold using gravity rather than external pressure. This technique is ideal for creating complex shapes and intricate designs, making it particularly suitable for automotive components like intake manifolds. The process involves the use of reusable molds (often made of steel or iron), which ensures consistency and precision in each casting.
Key Benefits of Aluminum Gravity Casting
1. High Dimensional Accuracy: Gravity casting allows for tight tolerances and precise dimensions, which are essential for intake manifolds that must fit seamlessly within an engine assembly.
2. Superior Surface Finish: Intake manifolds produced through aluminum gravity casting typically have smooth surfaces, reducing the need for extensive post-production machining.
3. Material Strength and Durability: Aluminum is known for its excellent strength-to-weight ratio. Gravity casting enhances these properties by creating dense, defect-free structures that can withstand high pressures and temperatures.
4. Cost-Effectiveness: Compared to other methods like die casting or CNC machining, gravity casting is more economical for medium- to high-volume production runs due to its reusable molds and reduced material waste.
5. Environmental Sustainability: Aluminum is a recyclable material, and gravity casting generates minimal waste, making it an eco-friendly choice for manufacturers.
Why Aluminum Gravity Casting Is Ideal for Intake Manifolds
Intake manifolds are subjected to extreme conditions, including high temperatures, vibrations, and exposure to corrosive substances. Aluminum gravity casting offers several advantages that make it ideal for producing these critical components:
1. Lightweight Construction: Aluminum's low density reduces the overall weight of the intake manifold, contributing to improved fuel efficiency and vehicle performance.
2. Thermal Conductivity: Aluminum's excellent thermal conductivity helps dissipate heat effectively, ensuring consistent engine operation and reducing the risk of overheating.
3. Corrosion Resistance: Intake manifolds made from cast aluminum are highly resistant to corrosion, extending their lifespan even in harsh environments.
4. Complex Geometries: Modern engines require intake manifolds with intricate designs to optimize airflow and fuel distribution. Gravity casting enables the production of complex shapes with high precision.
The Aluminum Gravity Casting Process
Understanding the aluminum gravity casting process is essential to appreciate its effectiveness in manufacturing intake manifolds. Here’s a step-by-step overview:
1. Mold Preparation
The process begins with designing and preparing the mold, which is typically made of steel or iron. The mold is treated with a refractory coating to facilitate easy removal of the casted part and prevent defects during solidification.
2. Melting Aluminum
Aluminum ingots are melted in a furnace at temperatures exceeding 650°C (1200°F). The molten aluminum is then carefully monitored to ensure it remains free of impurities.
3. Pouring Molten Aluminum
The molten aluminum is poured into the mold cavity using gravity. The controlled pouring ensures uniform filling and reduces the likelihood of air pockets or defects forming in the final product.
4. Cooling and Solidification
Once the mold is filled, the aluminum begins to cool and solidify. This stage is critical, as it determines the mechanical properties and structural integrity of the intake manifold.
5. Demolding
After solidification, the mold is opened, and the casted intake manifold is removed. Any excess material or flash is trimmed during this stage.
6. Post-Processing
The final product undergoes additional processes such as machining, polishing, or coating to meet specific design requirements and enhance its performance characteristics.
Applications of Aluminum Gravity-Cast Intake Manifolds
Aluminum gravity-cast intake manifolds are widely used across various automotive applications due to their versatility and reliability:
1. Passenger Vehicles: Lightweight intake manifolds contribute to fuel efficiency and smoother engine performance in cars and SUVs.
2. Commercial Vehicles: Trucks and buses benefit from durable intake manifolds that can withstand heavy-duty operations over extended periods.
3. High-Performance Engines: Sports cars and racing vehicles require precision-engineered intake manifolds to optimize airflow and maximize engine output.
4. Marine Engines: Corrosion-resistant aluminum intake manifolds are ideal for marine applications where exposure to saltwater is common.
Future Trends in Aluminum Gravity Casting
As automotive manufacturers continue to prioritize efficiency and sustainability, aluminum gravity casting is poised to play an increasingly important role in component production. Advancements in mold design, automation, and material science are expected to further enhance the capabilities of this manufacturing method. Additionally, the growing demand for electric vehicles (EVs) may drive innovation in intake manifold designs tailored for EV powertrains, where thermal management remains critical.
Aluminum gravity casting has proven to be an exceptional manufacturing method for producing high-quality intake manifolds that meet the rigorous demands of modern engines. Its ability to deliver lightweight, durable, and precise components makes it a preferred choice among automotive manufacturers worldwide. By leveraging this technology, companies can achieve cost-effective production while maintaining environmental responsibility—a win-win scenario for both businesses and consumers alike.
Whether you’re an automotive engineer or an enthusiast keen on understanding manufacturing processes, aluminum gravity casting offers a fascinating glimpse into how innovation drives performance in the automotive industry.
Factory Cabability
| Material | 1. Sand casting&Gravity casting&Low pressure die casting: |
| Service | Sand casting, Gravity casting, high pressure die casting,low pressure die casting and CNC Machining casting. |
Equipment of Casting | 1. High pressure die casting machining:125T/180T/250T/280T/500T/800T/1250T 2. Gravity casting machine: 7 production lines 3. Low pressure die casting machining: 1 production line 4. Sand casting machine: 6 production lines 5. Degassing equipment and opportunities to refine the material 6. Machining: 9 Sets CNC Machines; 5 sets Milling machines; 3 setsTurning machines; 20 sets drill and tap machines |
| Testing Facility | Spectrometer, Tensile test device, Hardness test device, CMM, X-Ray, Leaking test device |
Precision Machining | CNC turning, Milling, Drilling, Grinding, Cutting, Reaming and Threading |
| Finished | Polishing, Sand blasting, Heat treatment, Painting, Powder coating, Anodizing, Electroplating, Chrome plating, Mirror polishing. |
| Products | All kinds of Cast aluminum productions: Including Vehicle industry,Medical device industry, Marine industry, Lighting industry,Oil&Gas Transporttation industry, Electric Utility & Communication Industries, Architectural industry and Furniture industry so on |
Production Images
 |  |  |
Company Equipment
From Casting to Machining, One-stop Solutions for your designs
Packing & Shipping
Casting parts are very heavy, package must be strong. Our package material is wooden crate which is Fumigation free.
And we can pack productions as customers' requirements
Why Choose Us
❖ More than 25 years in castings and machining process; so we have much experience for your projects.
❖ Passed ISO9001 : 2015 & TS16949 : 2009
❖ Have four casting types in our factory; you can find the four process in one factory, save cost for your company
❖ From Casting to Finished surface, Owned casting, polishing and plating workshops, one-stop, We can offer Good quality and strict delivery time.
❖ With samples and order: We can offer dimension report, Chemical composition and Mechanical properties
❖ Control material with spectral and thermal analysis equipment (density and processing)
❖ Spectral analysis of raw material and liquid melt, batch before casting.
❖ Transportation Advantage:
A) Near Sea Port and Air Port-Ningbo Sea Port and Yiwu Airport or Hangzhou Airport;
B ) From Shanghai to our factory by Fast train directly, takes two and half hours; From Hangzhou to our factory, only takes one hour
FAQ
Q1. Are you trading company or manufacturer
We are factory, We are only doing cast aluminum and machining more than 20years, we have much experience in this industry. If you find some "factory" can do kinds of material castings(steel, iron,stainless,cooper.......), we are sure they are trading company. If you have other material castings to do, we can introduce for you free. It is our pleasure that we can help you.
Q2. How to get quotation from your factory?
We need a 3D CAD solid model to prepare a First Quote interactive quote. All of the Firstcut processes are dependent on good 3D CAD solid models. Two-dimensional (2D) drawings are not adequate for quoting or making parts.
We can accept native SolidWorks (.sldprt) or ProE (.prt) files as well as solid 3D CAD models from other CAD systems output in IGES (.igs), STEP (.stp), ACIS (.sat) or Parasolid (.x_t or .x_b) format.
Q3. When can I get the price?
We usually quote within 48 hours after we get your inquiry. If you are very urgent, please call us or tell us in your email so that we will regard your inquiry priority.
Q4. How about your lead time?
1): Toolings &Samples
Sand Casting will take 15 to 30 days after receiving your advance payment.
Gravity casting, low pressure die casting, high pressure die casting will take 30 to 60days after receiving your advance payment.
2) Mass production
The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build drawings for you after we get your samples too.
Q6. What is your sample policy?
We can supply 1pcs sample free (value under USD15/PCS) after we finish as your drawings, but the customers have to pay the freight cost. If you need more samples, you have to pay the samples cost.
Q7. Can we use your current tooling? Or can we get samples which are shown on your website?
No, we can't do it.
We only accept OEM orders and do casting parts as your drawings or samples. We can't sell any production or design to any third body. We can't show any photos on website without our clients' allowance. We signed NDA with all clients, all tooling and drawings belong our clients. We only use the tooling to make productions for one client. The client can take way the tooling any time after tooling cost.
Q8. Do you test all your goods before delivery?
Yes, we have 100% test before delivery
Q9: How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit ;
We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
